Conveyor Units Ltd

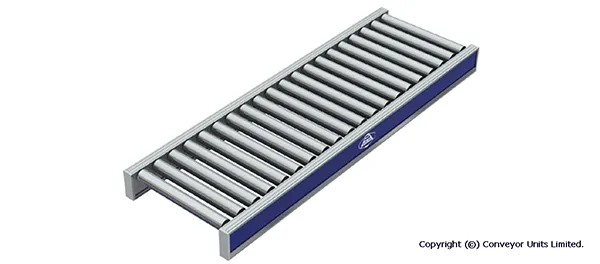

Aluminium Gravity Roller Conveyor – AL GR XU60

Overview

• 120mm x 40mm x 2.5mm thick aluminium profile bolted construction framework.
• Standard widths available: 312 – 1012mm (in 50mm increments).
• Static load per roller – 30Kg.
• 50mm diameter steel rollers can be fitted at 75mm, 100mm and 150mm.
• Top of roller height from underside of frame is 125mm.
• Roller tubes are zinc plated as standard.
• 50mm diameter plastic rollers are also available.
• Also available powder coated and stainless steel.
