Comde-Derenda GmbH

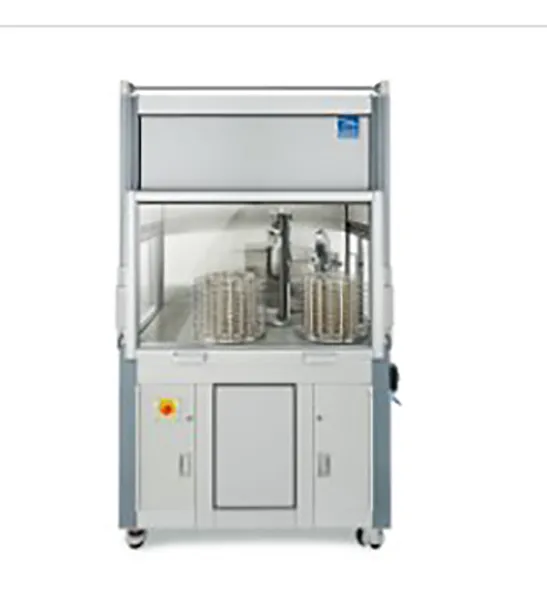

Automatic Weighing System AWS-1RE

Design ∙ Dust-protected weighing chamber with: • Magazines for holding filters before and after weighing (up to 2 magazine towers, with 25 or 14 magazine discs, with 15 filter positions, total capacity from 210 up to 750 filters) • RFID filter trays (patented) for holding the individual filters • Carrier fork for transporting the filters within the system • Microbalance with draft shield • Reference magazine for holding reference filters and reference weights • Fan filter unit (FFU) for contamination protection • Climate control unit (without climatization on request) • Control panel for manual control of system components • RFID system for filter encoding and identification • Ionization system ∙ PC with system software AWS Control (featuring custom encoding function) ∙ Power supply cabinet underneath the weighing chamber The AWS-1RE, being a modular system, is assembled with optional components according to the customer‘s individual requirements. Optional components can be integrated into the main system and are fully compatible with the system‘s hardware and software. All components operate fully automatically within the system. Operating Principle and Weighing Process Before weighing takes place, the system settings and all parameters for the planned weighing job are entered in the PC, using the software AWS Control. Next, the unsampled filters are manually placed in RFID filter trays and inserted into the magazine of the AWS-1RE.
