Cogsdil

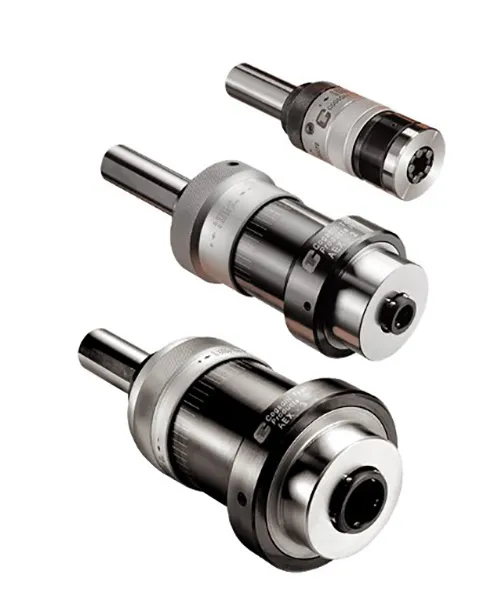

AEX Series

For burnishing the outside diameter of cylindrical parts, such as shafts rotating in bushings or bearings. Provides an ideal surface for grease and oil seals.

Offered in three styles:

• AEX-1, with a smaller body diameter and shorter overall length suitable for screw machines and automatics.All AEX-1 tools are bottoming-style, designed for machine-feed. Available for nominal diameters from .062 to .625 inch (1.57 to 15.88mm).
• AEX-2, for nominal diameters from .062 to 1.000 inch (1.57 to 25.4mm). Features twice the work length as compared to the AEX-1.Available with machine-feeding cage or with bottoming-style cage.
• AEX-3, for nominal diameters from 1.000 to 2.000 inches (25.4 to 50.8mm). Available with machine-feeding cage or with bottoming-style cage.

AEX tools are adjustable in increments of .0001 inch (.002mm).
