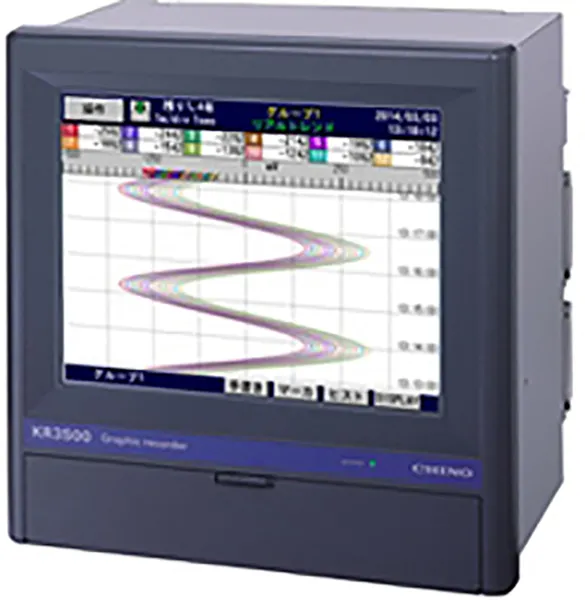

KR3S SERIES Graphic Recorder

KR3S SERIES Graphic Recorder

KR3S Series are network compatible advanced paperless GraphicRecorder with high performance and high operating function along withhigh visibility 10.4" TFT Color LCD touch-screen display.

Universal input with high speed of sampling rate 1sec. and highaccuracy rating of ±0.1% is realized. Measured data can be stored intomemory and USB and CF Card up to 8GB are supported. As it can bemonitored by a web browser, display on several computers on intranetor internet. Not only that, FTP transfer of data file and E-mailnotification are also available.

Features

• Clear 10.4" TFT color LCD display. High visibility display with various
• display functions. Real time/Historical trend screen, Bar-graph screen and numeric display are selectable for various applications.
• Large capacity of data memory and various recording methods
• USB slot and CF card is equipped as standard. 2GB of memory is provided and is expandable up to 8 GB. Various data storing methods are selectable such as schedule programming by time of day and time of date, recording start-up by external signal, and event and data logging of before and after trigger points for alarm.
• Multi points stable recording with high speed/accuracy . High-speed
• recording of approximately 1sec. for every point and high accuracy of ±0.1% are realized. Stable measuring and recording are possible with high speed. Withstand voltage between input channels is as high as 1000V AC (Excluding resistance thermometer input).
• Easy operating and programming without manual With touch screen
• display, operation and settings can be performed easily by touching buttons on the display.
• Direct writing on the screen. With attached touch pen, various comments can be written on the screen.
• Extend inputs with CHINO controllers. KR3S can communicate with up to 16 CHINO controllers for parameter settings and read/record of measuring values through low-order communications (Option).
• USB port provided in front. Readout of data and files are possible by
• connecting through an USB memory stick for PC.
• Support LAN network (Option). Through Ethernet communications
• (Option), varius functions such as remote monitoring by a browser, and FTP server, and Email notification etc. are supported.
• Analyzing/data acquisition application software (Optional)
• It is easy to replay and edit the recorded data file with the software.
• Replay display has functions of vertical/horizontal trend, circular trend and also wave-analyzing and marking by using the cursor.
