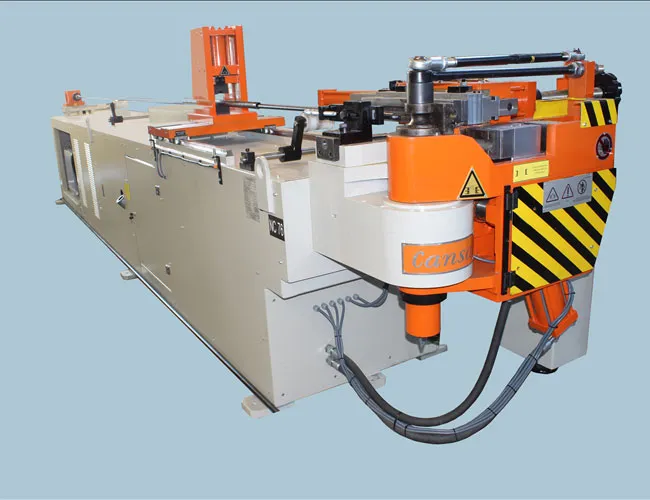

Booster Bending System
Technical Details:
NC system hydraulic pipe bending machine
Maximum bending capacity 76x4mm - 90X5mm - 114X6mm diameter
Bending axis by hydraulic valves
Hydraulic booster
Hydraulic clamp
Hydraulic pressure die
Hydraulic mandrel
Hydraulic support
Total motor power -30 kw
Hydraulic clamp system with bottom clamping
Automatically activated hydraulic oil cooler and double fans
Timed automatic lubrication for working components
Automatic mandrel lubrication
Max. 190 bending angle
Bending degree with encoder
7” color touch screen
Manual or automatic operation on the screen
To see daily / total amount of production on the screen
Security warning light
To follow error messages on the screen and on the watch page
Foot pedal or button control optionally
Ability to record 1000 different programmes
Mandrel length 6000 mm.
Max. hydraulic pressure 220 bar
Safety plate on the front and back of the bending head
Supported bend arm and bottom arm
Electrical panel safety lock and panel lock with key
Two years guarantee; technical service and training confidency by CANSA MAKINA
Suitable for CE
