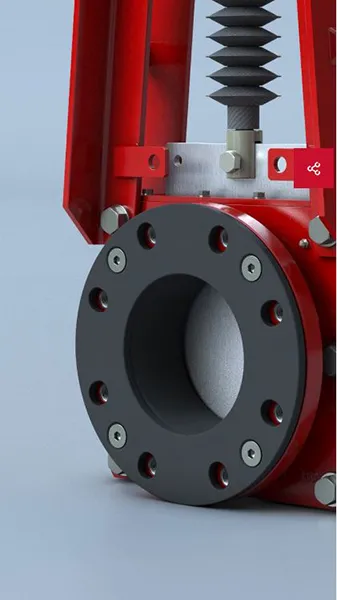

Bidirectional Knife Gate Valve Series 762

Specifications:-

Size Range 3” to 48” / 80 mm to 1200 mm

Body Materials          Ductile Iron (3” – 28” / 80 mm – 700 mm)
                                    Carbon Steel (30” – 48” / 750 mm – 1200 mm)
                                    Check with factory for other available materials

Pressure Ratings        316 SS Gate
                                    3" - 24" 100 psi / 80 mm - 600 mm 7 bar
                                    26" - 42" 75 psi / 650 mm - 1050 mm 5 bar
                                    44" - 48" 50 psi / 1100 mm - 1200 mm 3 bar
                                    (Higher pressures are available with select gate materials)

Stem Materials 304 Stainless Steel

Gate Materials 304, 316, 317 Stainless Steel, SAF 2507 Duplex, 17-4PH Stainless Steel, Hastelloy® C, Monel®, Titanium, Duplex 2205

Seat Material Temperature Range   Nat. Rubber: 165°F / 74°C
                                                            Buna-N: 194°F / 90°C
                                                            EPDM-HT: 302°F / 150°C

Body Style Two Piece Bolted - Flanged

Design Standard Manufacturer Standard

Testing Standard Manufacturer Standard

Flange Drilling ASME B16.5 CL150
ASME B16.47 CL150

Certifications Canadian CRN, PED - Category I Module A (Group 2 Liquids)

Face to Face Industry Standard

Actuator Options Direct Mounted Handwheel, Bevel Gear Operator, Double Acting Pneumatic Actuator, Hydraulic Actuator, Electric Actuator

Applications Mining: Primary Milling, Secondary Milling, Primary Cyclone, Secondary Cyclone, Flotation Cell, Thickener, Filter Pump
HPAL/POX: Autoclave Application Process Pumps

Features & Benefits

The Bray Series 762 bidirectional heavy duty slurry valve is designed for demanding high pressure slurry applications. Twin elastomer seats and push-through gate design facilitate self-cleaning and prevent media build up.

The durable ductile iron body is offered in a two-piece bolted flange style. When fully open, the valve is full bore, offering no resistance to line media.

Features

Protective stem cover is standard increasing cycle life in hazardous environments
Unique J-ring steel-reinforced, elastomer sleeve design provides energized, zero leakage shutoff in both directions. Retaining rings included as standard throughout the entire size range
In the open position, the energized sleeves shield all metal components from direct contact with the flowing process media
Robust gate designed for high pressure slurry applications and available in a wide range of corrosion resistant alloys
Unrestricted flow path with minimal pressure drop achieved through full port valve design for extended sleeve life
Designed with ample clearance for push-through allowing complete gate closure
Flanged two-piece bolted body allows for easy maintenance and is drilled and tapped to ASME CL150 flange patterns as standard. Other drilling options available upon request
Bottom flush plate with tapped ports offered as an option, allowing for safe discharge of media and easy flush water connection
