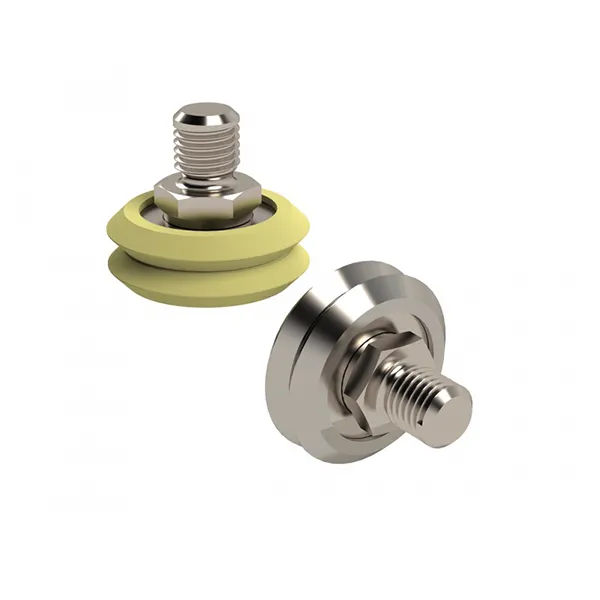

DualVee Studded Guide Wheels

DualVee Studded Guide Wheels

• Convenient and simplified installation option includes a guide wheel complete with an affixed threaded stud
• Versatile low profile stud available for compact motion system needs
• Increase torque capacity with larger threaded studs option
• Availability for all versions of DualVee guide wheels

DualVee Studded Guide Wheels are linear guide bearings which consist of both and external and internal 90-degree vee angle with a permanently attached threaded stud. The vee groove guide wheel is made with a double row angular contact ball bearing for excellent load capability and long service life. Studded guide wheels are available with all versions of DualVee wheels attached to threaded studs. Threaded studs are made from AISI 303 stainless steel and are available in concentric and eccentric offset versions to enable fit-up adjustment to linear guide track. A variety of protection options are available including rubber seals, metal shields, or seal/shield combination to meet specific application needs for operation in various types of contamination. Special DualVee guide wheel versions are available for debris-laden environments, low temperature and high temperature applications, high pressure fluid washdown, food processing and pharmaceutical, and vacuum applications. The guide wheels are internally lubricated for life. These linear guide bearings are ideal for very long length applications in harsh, debris-laden environments and they provide very high load capacities. Use them to create very smooth guided motion that is quiet and durable.
