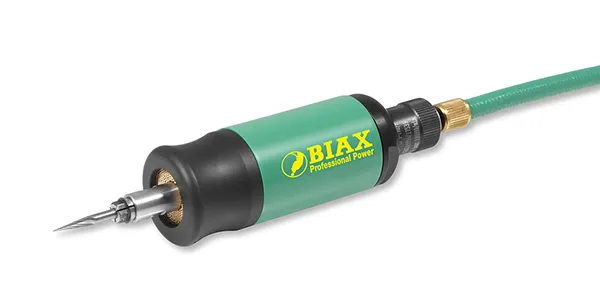

Straight Grinders
The Straight Grinders TVD 3-100/2 are oil-free grinders used for finest deburring operations.
100.000 rpm and an elastic spindle support mean you achieve an optimal surface quality when working on metallic materials. Noise emissions are also low. Thanks to the turbo drive it can be operated without lubrication (oil-free). No chatter marks also with finest deburring jobs.
Technical Data
Order number : 150149906
Power [W] : 80
Air consumption [l/min] : 180
Vibrations [m/s²] : < 2,5
Revolutions per minute [min¯¹] :100.000
Valve : Rotary valve
Engine type : Turbine
Exhaust air direction : Forwards
Front bearing set : Elastic
Noise level [db (A)] : 70
Weight [g] : 250
Max. tool shank Ø [mm] : 3
Max. carbide tool Ø [mm] : 3
Fitting hose unit : 001366537 (inclusive)
Included Accessories
Collet ZG 5/3 mm : (001999985)
Hose unit : (001366537)
Collet wrench SW 6 + 8 (007899751)
