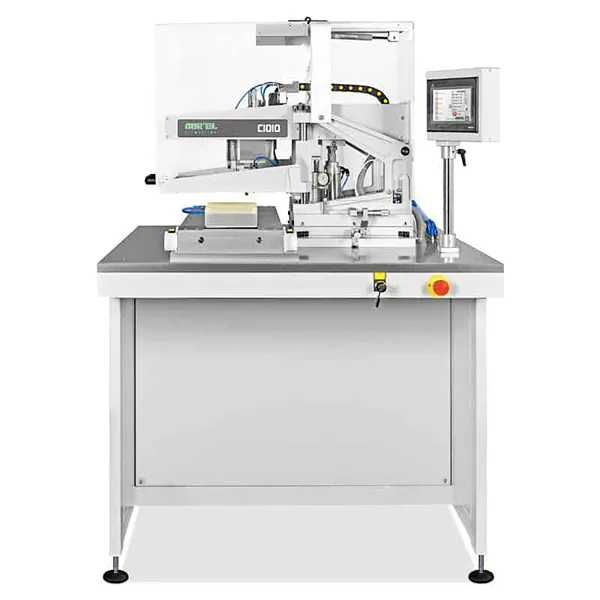

C1010 Fast screen-stencil printing machine

• AUREL C1010 is a very fast screen/stencil printing machine with security cover that can print area up to 160 x 160 mm.
• C1010 grants the highest productivity for hybrid circuits standard sizes (up to 6″ x 6″).
• C1010 can be equipped with exchangeable fixtures according to the substrate drawing with vacuum or mechanical clamping system.

APPLICATIONS

AUREL C1010 is a free standing fast screen printer with cabinet and security cover that can print area up to 160 x 160 mm, assuring uniform deposition from corner to corner.

Some applications for electronic and general industrial purposes are:

• Thick film and polymer pastes
• Multilayer Hybrids
• Solder paste for SMT
• Glues, adhesives, resins
• Through holes metallization
• Solder resist
• Sensor elements
• LTCC and Via Filling

CONTROL SYSTEMS

• The machine is PLC controlled and allows a great deal of flexibility on all functions
• Touch screen panel with user friendly interface
• Print and flood, alternate print, contract and off-contact print double print
• Digital reading of speed, pressure and parallelism
• Machine diagnostic
• Machine hood & lifting and locking safety switches
• Work recipes storing
• Pneumatic system to lift up the arm
• Print gap measurement set

HEAD

• One intelligent head on high precision slides
• High sensitive squeegee for fine-line printing, low pressure, constant angle, no vibration
• Controls of printing pressure, speed and printing delay
• DC motor driven head allows smooth movement and precise speed & stroke adjustment in both directions
• Configurable: one squeegee, one squeegee and flood blade

BASE

• Heavy bench for high stability mechanics
• High precision screen alignment by X-Y-θ and Z adjustments with centesimal micrometers
• Transparent cover and fulll operator’s security (CE marked)

WORK TABLE

• Lighted for an easy substrate alignment
• Substrate hold down by vacuum, Venturi ejector included
• Vacuum detector for substrate presence and chamber sensor
• Easily exchange different fixtures according to the substrate size: acrylic or aluminium nest
