ARi Industries, Inc

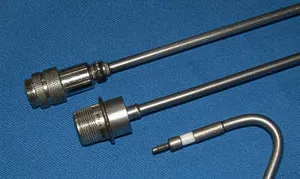

CONDUCTOR CABLE

• Conductor cable assemblies for normal industrial use to severe service for high temperature, corrosive, and exotic applications.
• Cable assemblies are available with leads or connectors are ready for installation.
• Eliminate the replacement of cables which deteriorate in radiation, severe heat, or corrosive environments.
• Stainless steel sheath construction and MgO insulation provide for exposure up to 1600 °F.
• Cable assemblies are available with hermetically sealed connectors.
• Cables are flexible and are available in several sheath materials, sizes and conductor materials.
• Custom cables can be manufactured to meet your specific requirements.

Designs

Cable:

• Sheath diameters available from 0.250″ to 0.500″ outside diameter (O.D.).
• Sheath material available in 300 series Stainless Steel or Inconel 600*.
• Magnesium Oxide (MgO) insulation single conductor in 300 series Stainless Steel, Inconel 600*, Nickel Clad Copper, or Copper.

Seal:

• Hermetically sealed AerOpak® cable.
• Connector materials are Nickel with a ceramic insert.
• Voltage rating = 1,500 VDC at 68 °F.
• Maximum operating temperature = 1,600 °F.
