Aplisens

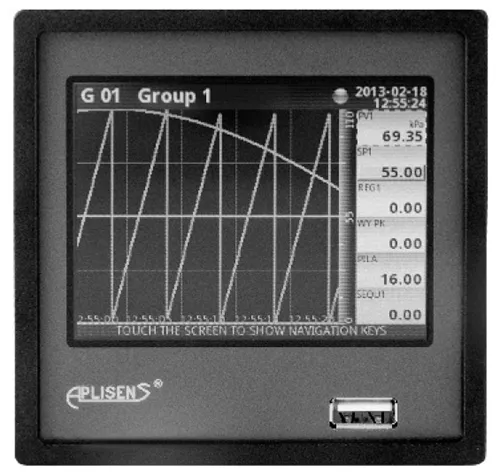

MULTICHANNEL CONTROLLERS WITH DATA LOGGING CAPABILITIES - PMS-110R PMS - 111R

Features:

• compact multichannel controller with data logging capabilities

• analog / digital /universal inputs

• thermocouple / RTD inputs

• counter / flow meter/ rate meter inputs

• current or relay / SSR outputs

• USB Host port for flush data storage

• free configuration and recording software

• 3.5"/5.7 TFT, 320 x 240 pixels, touch screen navigation

Application and functions

The data logger PMS-11..R is a powerful and versatile compact multichannel-controller with a capability to record data, if the recording function is requested and activated. Thanks to that it is one of the first industrial devices which integrates advanced control functions (PID, ON/OFF, time & profiles etc.) and logging of set points, excitations and current state of controlled objects. Based on Linux firmware, is stable and the touch screen makes configuration easy and comfortable and data presentation also readable and attractive. The device can simultaneously record all build-in logical channels, and is capable to record data with maximum speed 10Hz (ten samples per second, with some limitation of number of recorded channels). 1.5GB of internal data memory is enough for continuous recording of all channels with a speed of 1 sample per second (each channel) for over 50 days (250 000 000 samples in total!). An operator can download stored data using a USB flash disk or via Ethernet.
