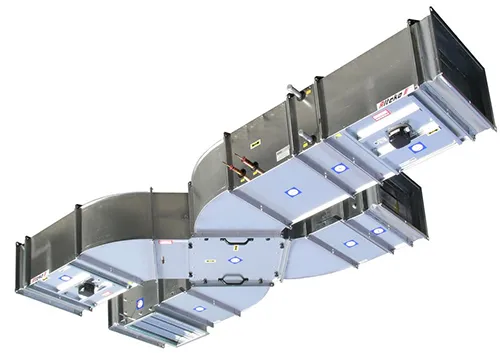

Ventilating and air-conditioning unit-built system TERNO-S
Not coating air-conditioning units for ventilation, heating, cooling, air dehumidification and heat retrieval from exhaust air (recuperation, regeneration). For transit air into 8500 m3 /h.
The ventilating and air-conditioning units TERNO-S consist of the necessary combination of individual piping parts delivered in the galvanized or varnished type.
The units are designed for the rooms and the air flow which correspond to the ordinary environment according to the standard, however, the TERNO-S K (KB) units are also manufactured in a modification suitable for an environment with the explosion danger Ex-Zone2 (SNV1) and Zone1 (SNV2), both inside and outside the fan, in accordance with standards ČSN EN 60079-7 ed.2 .
They are produced in the sizes of 200, 250, 280, 315, 355 and 400. The units TERNO-S are not gasproof and they can be installed in any position with the exception of the water cooler and the cooling evaporator. The fan parts K and KB can be installed in any position of the electro-motor.
The revolutions of the fan parts (air flow rate) can be controlled by using the revolution controller. (Refer to the catalogue „CONTROLS" regarding the detailed description.)
The fan parts TERNO-S must not be used for transporting the air which includes corrosive additives, and fibrous particles. Temperature of transported air can be in the range of -30°C to +85°C. Regarding the fans with the motors VTR, temperature can be -30°C to +40°C. The ambient temperature regarding the electro-motor can be -30°C to +40°C.
