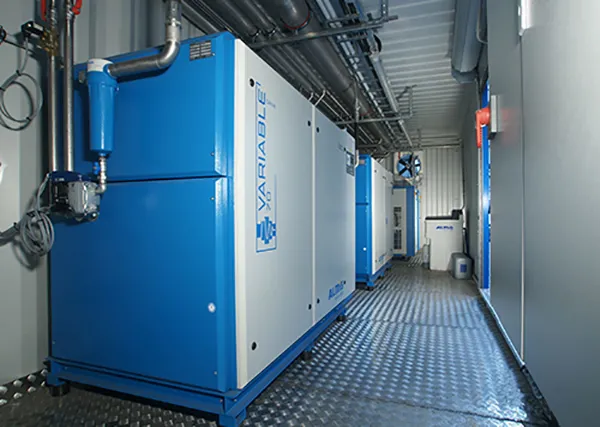

ALMiG compressed air container
ALMiG compressed air container
With compressed air containers from ALMiG, you are independent of the capacities and environmental conditions of your production halls.
We plan, build and install a ready-to-operate compressed air station with compressed air preparation and, if necessary, storage in a container and adapt the compressor station to your individual customer requirements.
The container can be set up flexibly with a crane or forklift truck where you need it.
Advantages of the ALMiG compressed air container
The equipment of the container is adapted to your customer requirements and can be flexibly combined. We take over the complete planning, construction and commissioning.
Simply connect power, compressed air and sewer lines and the container is ready for use. The assembly takes place on the surface prepared by the customer
ALMiG containers can be easily combined and expanded. They also work in combination with systems from other manufacturers.
Details
ALMiG takes over the complete project planning and planning of the compressor station. The systems are tested and delivered turnkey.
ISO containers are used. These are standardized large-capacity containers (sea freight containers) made of steel, which enable quick and easy loading, transport and assembly. The design is defined in the ISO 668 standard.
Container type / external dimensions mm (L x W x H)
- 10 foot container: 2,831 x 2,352 x 2,390 mm
- 20 foot container: 5,898 x 2,352 x 2,390 mm
- 40 foot container: 12,192 x 2,438 x 2,591 mm
The outside can be painted in RAL colors according to customer requirements. The components in the container are painted according to the manufacturer's standard.
The components are mounted in the container on the floor or on the wall. The container serves as an enclosure and is also insulated on the walls and ceiling.
Piping
The piping is carried out in accordance with the current standards.
- Standard steel pipelines in thread or press design.
- Pressureless condensate lines made of plastic or carbon steel
Pipe pressure design according to the application. Leak tests and water pressure tests are carried out in the factory and monitored by the QM system. Other piping materials such as copper or stainless steel are available on request.
Electrics
As standard, the containers are equipped with fully wired control cabinets as well as interior lighting and electrical radiators as frost protection.
The cabling is done with flexible sheathed cables either in galvanized cable ducts and / or in plastic pipes. The entire system is subjected to a test run under nominal conditions (as far as possible) and only leaves the factory after a successful test run.
