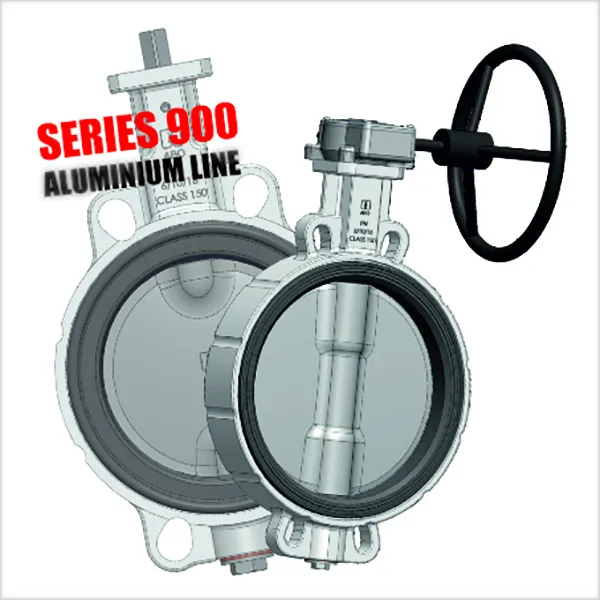

Concentric butterfly valves Series 900 with aluminum body
Concentric butterfly valves Series 900 with aluminum body
ABO Series 900 ALU Line valves are soft seated concentric valves with a wide range of applications including industrial water processing, water treatment, food and beverage, swimming pools installation, installation with plastic pipelines. Valves are available in dimensions from DN 32 – 400. Series 900 ALU Line are valves with aluminium body and exchangeable soft seat with light weight, what is great for easy installation (valve does not overload the piping). This valves are perfect solution for plastic pipelines with great resistance to corrosive environment. Temperature rating: – 40°C +150°C. Pressure rating: up to 16 Bar. FDA approved. Tightness Class “A”. Available with different seats for all media.
Body construction: DN 32 – 400
Face to face acc. to: EN 558 Series 20; ISO 5752 Series 20; API 609 Table 1
Flange accomodation acc. to: EN 1092-1, 2; ASME B16.5, ASME B16.47
Top flange acc. to: EN ISO 5211
Marking acc. to: EN 19
Tightness check acc. to: EN 12266-1
Applications: Purification, treatment and distribution of potable or supply water, swimming pools, food industry
