PVS DIRECT CONNECTOR

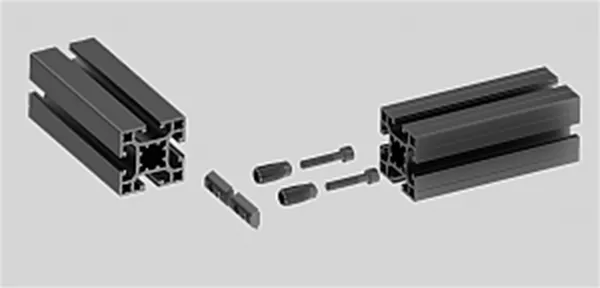

Connecting system that requires no machining.  The self-cutting threaded sleeve has a shank for an Allen ky which can be used to thread it into the longitudinal slot.  The screw is mounted into the sleeve in advance and is used to connect the longitudinal members into the cross member.

Note that this connection system blocks the side slots, so panels would have to terminate at the fasteners or be used on a perpendicular slot.

Each part contains 2 screws, 2 threaded sleeves, 2 light extrusion nuts

Base 50   A33-90Base 40   C33-90Base 30   B33-90
