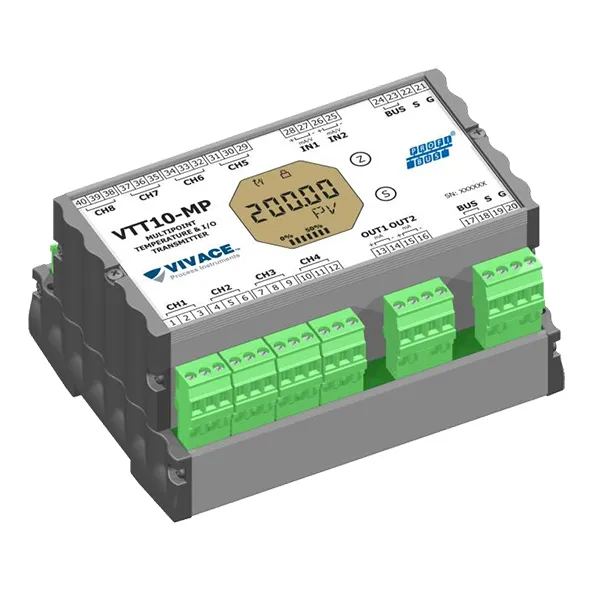

Profibus-PA Multipoint Transmitter (Temperature & I/O) VTT10-MP

Profibus-PA Multipoint Transmitter (Temperature & I/O) VTT10-MP is a temperature transmitter with analog inputs and outputs for panel mounting, which has a multifunction LCD display. It is powered by a 9 to 32 Vdc voltage, accepting up to eight inputs for 2- and 3-wire temperature sensors, plus two analog inputs (voltage: 0-5 Vac or current: 4-20 mA), configured by the user.

The transmitter accepts TC, RTD, Ohm and mV sensors. For actuation in final control elements such as valve positioners, it has two analog outputs (4-20 mA). It can be configured through commercially available tools, based on EDDL and DTM or locally, using a magnetic key.

Main benefits:


• A single node in the Profibus-PA network with consumption of 12mA
• Reduced installation and design cost through the availability of eight independent temperature channels and analog input and output signal converters
• Easily enables the integration of output devices (eg valve positioners) and HART / 4-20 mA input (transmitters) in Profibus-PA networks
• Easy configuration of inputs and outputs
• Local adjustment
• Self-diagnosis
• 5 digit rotary, multifunctional and bargraph LCD
• Local adjustment intuitive, configurable and with fast editing function
