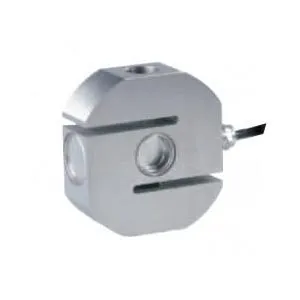

High Measuring Accuracy, Load Measurement Range of 0.5t to 7.5t, Compact and Rugged Model for Tension and Compression, Wide Range of Media Compatibility, Low Static and Thermal Errors S-Type Load Cell MLS22 Characteristics: Standard Measurement Range 500kg, 1t, 2t, 4t, 5t, 7.5t, Any other non-standard range
Output Signal 2mV/V
Accuracy (combined LRH) 0.02% FS
Creep ±0.012% FS/30min
Overload Rating 150% FS
Zero unbalance ±1.5% FS
