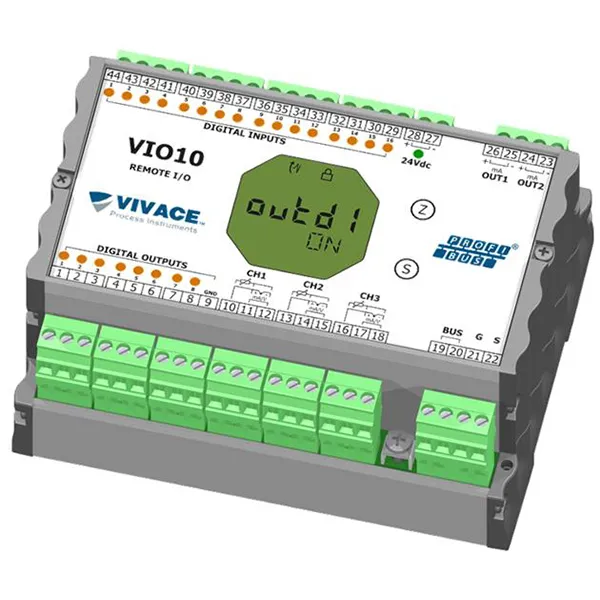

Profibus-PA Remote IO VIO10

Profibus-PA Remote IO VIO10 is a remote I/O with Profibus-PA communication, designed for field or panel (with DIN rail) installation.

It has great versatility with temperature inputs, 4-20 mA inputs and outputs, digital inputs and outputs on a single hardware.

Benefits

Reduced installation and design cost through the availability of 16 digital inputs, 8 digital outputs, 3 temperature channels and analog input and output signal converters
Easily enables the integration of output devices (eg valve positioners) and HART / 4-20 mA input (transmitters) in Profibus-PA networks
Easy configuration of inputs and outputs
Several measurement and sensor types (T/C, RTD, mV and ohm)
Self-diagnosis
5 digit rotary, multifunctional and bargraph LCD
Local adjustment intuitive, configurable and with fast editing function

Technical Specifications
Accuracy Temperature	According to Tables Above Inputs / Outputs: ± 0.1% Span calibrated
Supply Voltage / Quiescent Current Output Load Limit	9 to 32 Vcc, no polarity / 12 mA
Certification in Hazardous Area	Intrinsically Safe (pending)
Ambient Temperature Limit	-20 to 70°C
Configuration	Remote configuration through tools based on EDDL or FDT / DTM. Local configuration via magnetic key
Mounting	In field or panel, using DIN rail
Degree of Protection	IP20
Type of Electrical Insulation (between Profibus-PA bus, inputs and outputs)	Galvanic Isolation, 1,5 kVac
Housing Material	Aluminum / Plastic
Approximate weight	500 g
