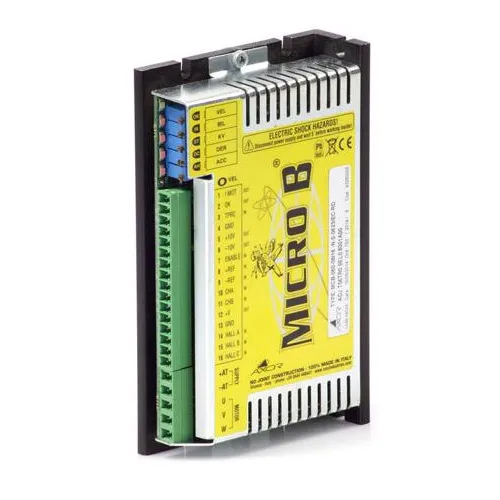

MICRO B (MCB) Analogue Servo Drive

MICRO B (MCB) Analogue Servo Drive

MCB Servo Drive Main Features:|


  • Three phase trapezoidal brushless, four quadrant operation
  • Highly efficient and reliable power MOSFET output stage
  • Single DC power supply
  • Three velocity feedback modes: Hall Feedback / Armature Feedback / Encoder Feedback + Hall Signals
  • Ixt function
  • Five LED (Red/Green) indicating operating status


Fully protected against:


  • External short circuit - Over/under voltage
  • Over-temperature - Hall Signal absence
  • Wide load inductance range (1 - 30mH)
  • 60/120 degree commutation phase setting
  • Four adjusting potentiometers
  • Extractable screw terminals
  • Enable input available with both positive/negative logical levels


The typical applications are: Conveyors, Medical, Textile Equipment, Packaging Machinery, Positioners, Converting Machinery, X-Y Stages, Automated Assembly Machinery, Robotics and Component Insertion Machines.
