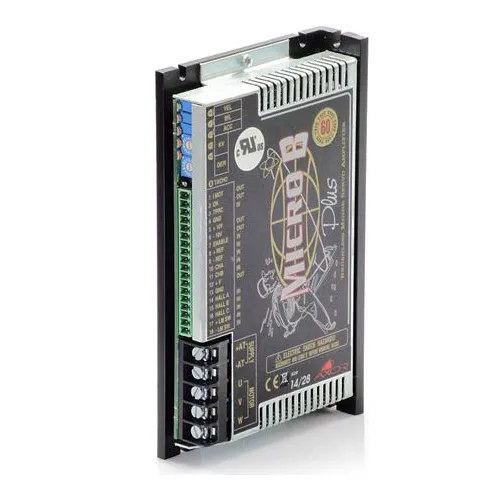

MCB Plus Servo Drive

MCB Plus Servo Drive

The MicroBPlus® can be used with encoder, resolver, PWM + Direction, pulse + Direction (like steppers).

Micro B Plus Servo Drive Features:


  • Three phase trapezoidal brushless, four quadrant operation
  • Highly efficient and reliable POWER MOSFET output stage
  • Single DC power supply
  • Four velocity feedback modes:
  • Hall Feedback
  • Armature Feedback
  • Encoder Feedback + Hall Signals
  • PWM+DIR Feedback
  • Five LEDS (Red/Green) indicating operating status


Fully protected against:


  • External short circuit (motor polarity)
  • Over / under voltage (supply)
  • Over-temperature, Hall Signal absence
  • Wide load inductance range (0.2 - 30mH)
  • 120 degrees commutation phase setting
  • Four adjusting potentiometers
  • Extractable screw terminals (for signals only)
  • Positive / Negative Limit Switches
  • Enable input available with both positive/negative logical levels approval - FILE E211869 (see specific technical manual for details)


Typical applications are: Conveyors, Medical, Textile Equipment, Packaging Machinery, X-Y Stages, Automated Assembly Machinery, Robotics and Component Insertion Machines.
