Mirle Automation Corporation

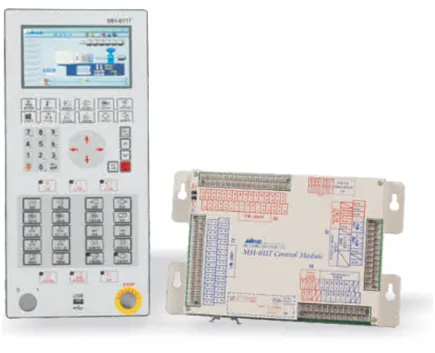

Injection Molding Machine Controller MH Series

Injection  Controller MH6117
Features of Injection Brick Controller MH6117:

• Display Unit CPU: ARM9 266MHz 32bits
• Control Unit CPU: RISC 140MHz 32bits
• Screen: 7.4-inch 800*480 color TFT LCD
• PID Temperature Control: 6 Ranges (control accuracy ± 1?)
• Linear Transducer Input: 3 sets (16bit)
• A/D Pressure Sensing Input: 1 sets (16bit)
• D/A Proportional Valve Output: 3 sets (16bit)
• Digital Inputs: 32
• Digital outputs: 32
• USB Interface:1

Injection  Controller MH9118
Features of Injection Controller MH9118:

• Display Unit CPU: ARM9 266MHz 32bits
• Control Unit CPU: RISC 140MHz 32bits
• Screen: 8.4-inch 800*480 color TFT LCD
• PID Temperature Control: 8 Ranges (control accuracy ± 1?)
• Linear Transducer Input: 4 sets (16bit)
• A/D Pressure Sensing Input: 2 sets (16bit)
• D/A Proportional Valve Output: 4 sets (16bit)
• Digital Inputs: 32
• Digital outputs: 32
• USB Interface:1

Injection Controller MH911A
Features of Injection Controller MH911A:

• Display Unit CPU: ARM9 266MHz 32bits
• Control Unit CPU: RISC 140MHz 32bits
• Screen: 10.4-inch 800*480 color TFT LCD
• PID Temperature Control: 8 Ranges (control accuracy ± 1?)
• Linear Transducer Input: 4 sets (16bit)
• A/D Pressure Sensing Input: 2 sets (16bit)
• D/A Proportional Valve Output: 4 sets (16bit)
• Digital Inputs: 32
• Digital outputs: 32
• USB Interface:2
