Lorain Modern Pattern, Inc.

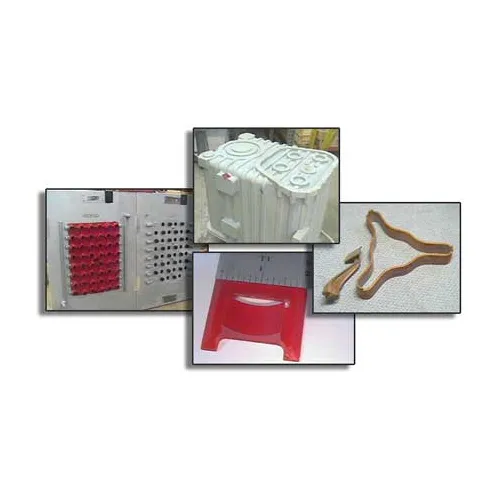

Industrial Foundry Patterns & Tooling

LMP will bench machine or CNC machine your patterns and core boxes and provide them to you loose or mounted on wood boards or metal plates. We can provide process-specific locators, pins, bushings and guide plates for your foundry ready tooling.

We will prepare your tooling to run in your tight flask, snap flask or mold box process, producing cheek patterns or upsets as required.

Features specific to the application can be added into the pattern or tool. These features can include (if applicable):

• Gating
• Risers
• Tight tolerance, intricate patterns
• Labeling/Logos/Engravings
• Cast thread detail
• Zero-draft cores
• Cooling fins
• Prep / pin / bolt locations (for large patterns/tools)
• Pouring basins
• Hot / Cold Core Boxes
• Mold Boxes
• Cheek Patterns
• Flask Upsets
