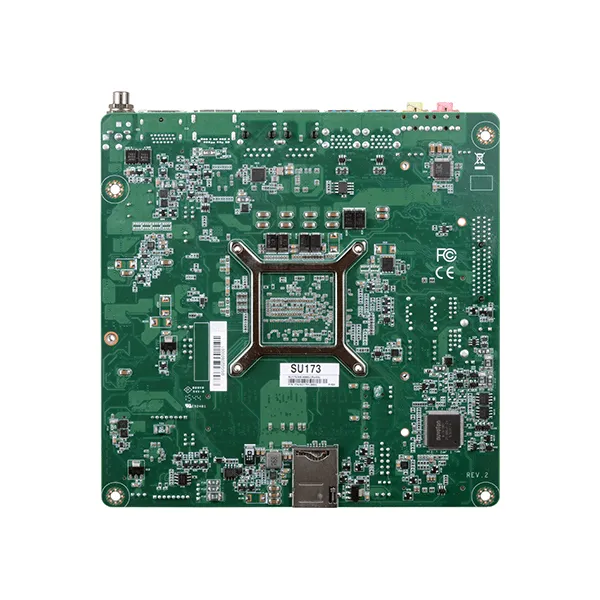

Thin Mini-ITX motherboard SU171/SU173
6th Gen Intel® Core™ Thin Mini-ITX, Rich I/O: 2 Intel GbE, 4 COM, 4 USB 3.0, 4 USB 2.0, Multiple expansion: 1 PCIe x4, 1 Mini PCIe, 1 LPC, Three independent displays: LVDS*/eDP + HDMI*/DP + DP++, 2 DDR3L 1600MHz SODIMM up to 16GB, 15-Year CPU Life Cycle Support
Thin Mini-ITX motherboard SU171/SU173 Characteristics:
Memory Two 204-pin SODIMM up to 16GB
Dual Channel DDR3L 1600MHz
BIOS Insyde SPI 128Mbit
Audio Codec Realtek ALC888S-VD2-GR
Controller 1 x Intel® I210AT PCIe (10/100/1000Mbps)
1 x Intel® I219LM PCIe with iAMT11.0 (10/100/1000Mbps) (only Core i7/i5 supports i
USB 4 x USB 3.0
Output & Interval System Reset, Programmable via Software from 1 to 255 Seconds
