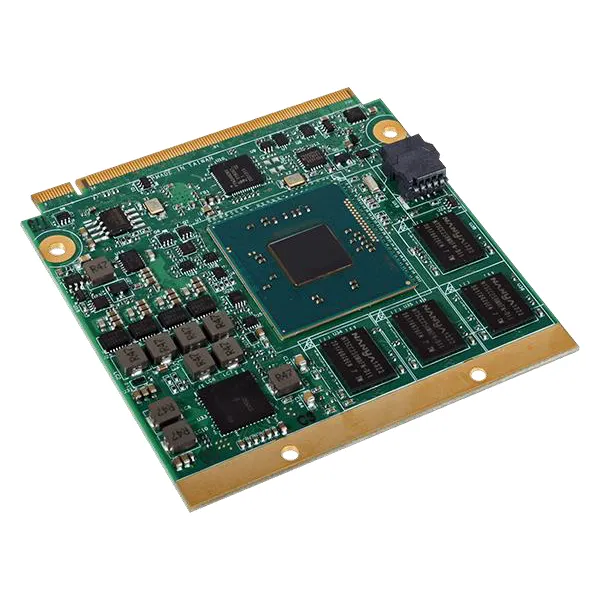

Qseven system on modules BT700
Intel Atom® E3800 Series, Rich I/O: 1 Intel GbE, 1 USB 3.0, 6 USB 2.0, Multiple expansions: 3 PCIe x1, 1 DDI (DP/HDMI/DVI), 1 LVDS, 2GB/4GB DDR3L Single Channel Memory Down, 15-Year CPU Life Cycle Support
Qseven system on modules BT700 Characteristics:
Memory 2GB/4GB Single Channel DDR3L Onboard 1333MHz
BIOS AMI 64Mbit BIOS
Controller Intel® HD Graphics
Feature OpenGL 3.2, DirectX 11, OpenCL 1.2
HW Decode: AVC/H.264, MPEG2, VC1, WMV9, JPEG/MJPEG, HEVC/H.264, VP8, VP9, MVC
HW Encode: AVC/H.264, JPEG/MJPEG, HEVC/H.264, VP8, VP9, MVC
Controller 1 x Intel® I210AT (10/100/1000Mbps) (0 to 60°C)
1 x Intel® I210IT (10/100/1000Mbps) (-40 to 85°C)
USB 1 x USB 3.0
6 x USB 2.0
