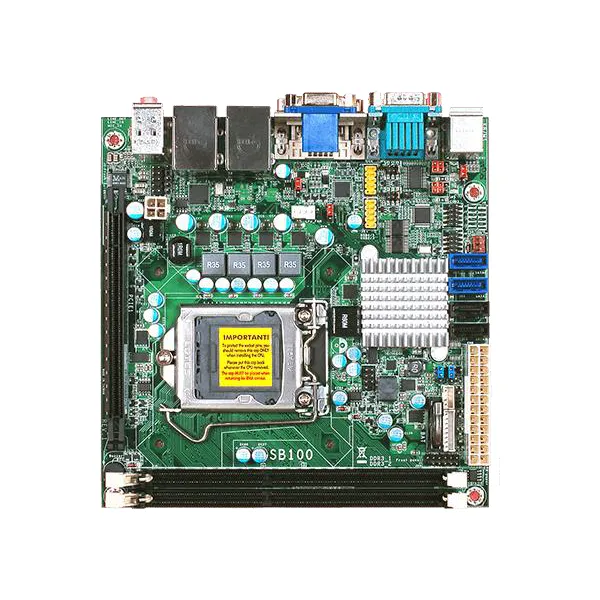

Mini-ITX motherboard SB100-NRM
3rd/2nd Gen Intel® Core™ with Intel® Q67, 2 DDR3 DIMM up to 16GB, 1 DVI-I, 1 VGA, Expansion: 1 PCIe x16, Rich I/O: 2 Intel GbE, 4 COM, 8 USB 3.0, 8 USB 2.0, 7-Year CPU Life Cycle Support
Mini-ITX motherboard SB100-NRM Characteristics:
Chipset Intel® Q67
Memory Two 240-pin DDR3 DIMM up to 16GB
Dual channel DDR3 1333/1600MHz (3rd generation processors)
Dual channel DDR3 1066/1333MHz (2nd generation processors)
BIOS AMI SPI 64Mbit
Interface 1 x PCIe x16 (Gen 3/ Gen2)
Controller Intel® 82579LM with iAMT 8.0 (10/100/1000Mbps)
Intel® 82574L PCIe (10/100/1000Mbps)
Output & Interval System Reset, Programmable via Software from 1 to 255 Seconds
