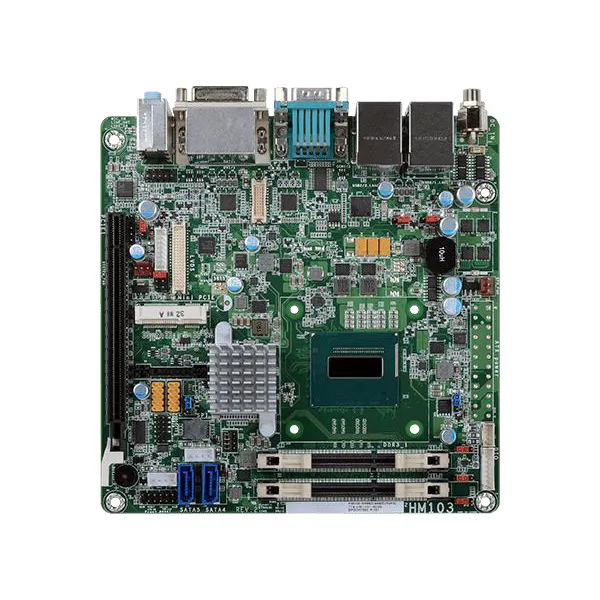

Mini-ITX motherboard HM101/HM103-HM86
2 DDR3L SODIMM up to 16GB, 1 HDMI, 1 DVI-I, 1 LVDS, 1 DP, Expansion: 1 PCIe x16, 1 Mini PCIe, Rich I/O: 2 Intel GbE, 2 COM, 2 USB 3.0, 6 USB 2.0, 4th Gen Intel® Core™ with Intel® HM86, 7-Year CPU Life Cycle Support
Mini-ITX motherboard HM101/HM103-HM86 Characteristics:
Processor
Intel® Core™ i5-4402E, 3M Cache, 1.6GHz (2.7GHz), 25W
Intel® Core™ i3-4100E, 3M Cache, 2.4GHz, 37W
Intel® Core™ i3-4102E, 3M Cache, 1.6GHz, 25W
Intel® Celeron® 2000E, 2M Cache, 2.2GHz, 37W
Intel® Celeron® 2002E, 2M Cache, 1.5GHz, 25W
Chipset Intel® HM86 Express Chipset
Memory Two 204-pin DDR3L SODIMM up to 16GB Dual channel DDR3L 1333/1600MHz
BIOS AMI SPI 64Mbit
Audio Codec Realtek ALC886
