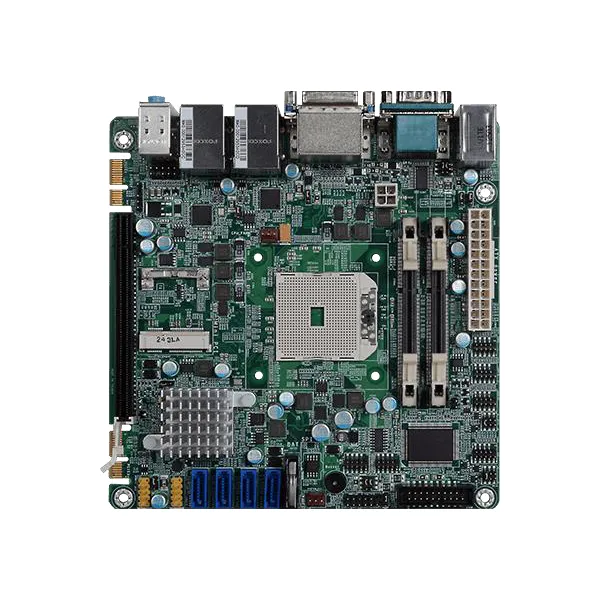

Mini-ITX motherboard CM100-C
Rich I/O: 2 Intel GbE, 6 COM, 4 USB 3.0, 6 USB 2.0, Expansion: 1 PCIe x16, 1 Mini PCIe, 2 DFI Proprietary Extension Bus, 3 independent displays: 1 HDMI + 2 DVI-I (DVI-D signal), 2 DDR3 SODIMM up to 16GB, AMD® Embedded R-Series with AMD® A70M, 5-Year CPU Life Cycle Support
Mini-ITX motherboard CM100-C Characteristics:
Chipset AMD® A70M
Memory Two 240-pin DDR3 SODIMM up to 16GB
Dual channel DDR3 (1.5V), LVDDR3 (1.35V), ULVDDR3 (1.25V) up to 1600MHz
BIOS AMI SPI 32Mbit
Controller AMD Radeon™ Dual Graphics technology delivers enhanced 3D graphics rendering performance
Audio Codec Realtek ALC886
Controller 2 x Intel® WG82574L PCIe (10/100/1000Mbps)
