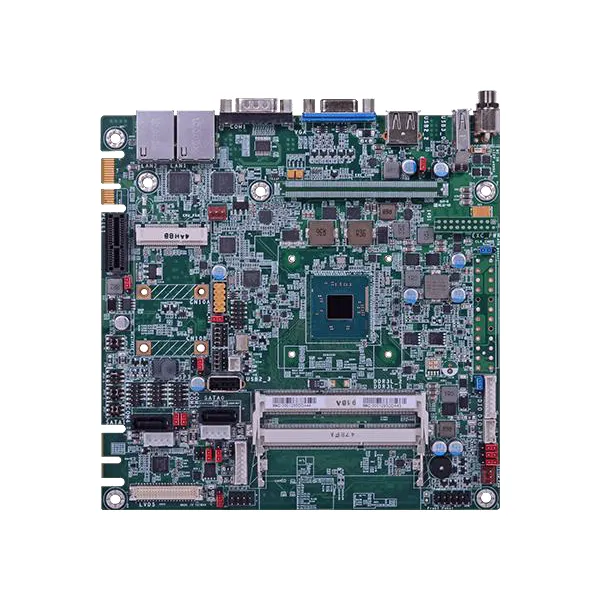

Mini-ITX motherboard BT161
Intel® Atom™ E3800 Mini-ITX, Expansion: 1 PCIe x1, 1 Mini PCIe, 2 DDR3L SODIMM up to 8GB, 1 VGA, 1 LVDS, Rich I/O: 2 Intel GbE, 4 COM, 1 USB 3.0, 4 USB 2.0, 15-Year CPU Life Cycle Support
Mini-ITX motherboard BT161 Characteristics:
Memory Two 204-pin DDR3L up to 8GB
Dual channel DDR3L 1333/1066MHz
BIOS AMI SPI 64Mbit
Controller Intel® HD Graphics
Feature DirectX 11, OCL 1.2, OGL 4.0, H.264, MPEG2, MVC, VC-1, WMV9 and VP8 (supported version dependent on OS)
Output & Interval System Reset, Programmable via Software from 1 to 255 Seconds
Temperature Operating: 0°C to 60°C
Storage: -40°C to 85°C
