COM Express® R2.1, Pin-out Type 6, Supports Compact and Basic modules, Multiple displays: VGA, LVDS, DP, eDP, Rich I/O: 1 GbE, 4 USB 3.0, 4 USB 2.0, microATX form factor

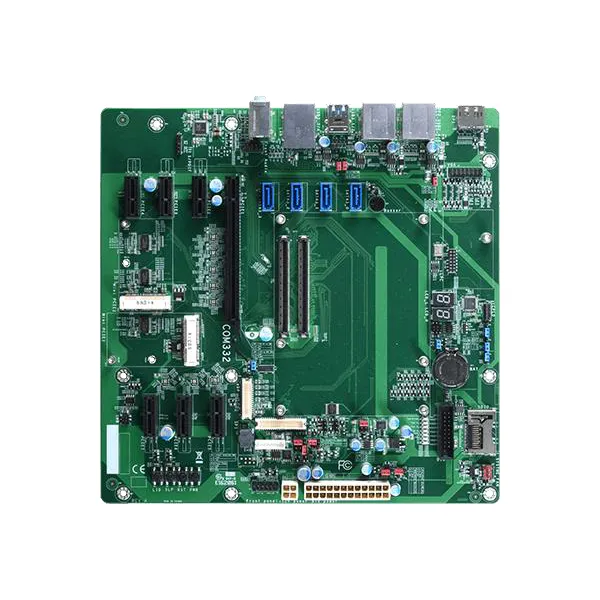

MicroATX Carrier Board COM332-B Characteristics:
Display 1 x VGA
1 x LVDS/eDP (eDP available upon request)
3 x DP
1 x eDP/LVDS (LVDS available upon request)
Interface 1 x PCIe x16
6 x PCIe x1
2 x Full-size Mini PCIe
1 x SDIO
Audio Codec Realtek ALC888S-VD2-GR
Ethernet 1 x GbE (RJ-45)
USB 4 x USB 3.0
4 x USB 2.0
Display 3 x DP
Audio 1 x Line-in
1 x Line-out
1 x Mic-in
