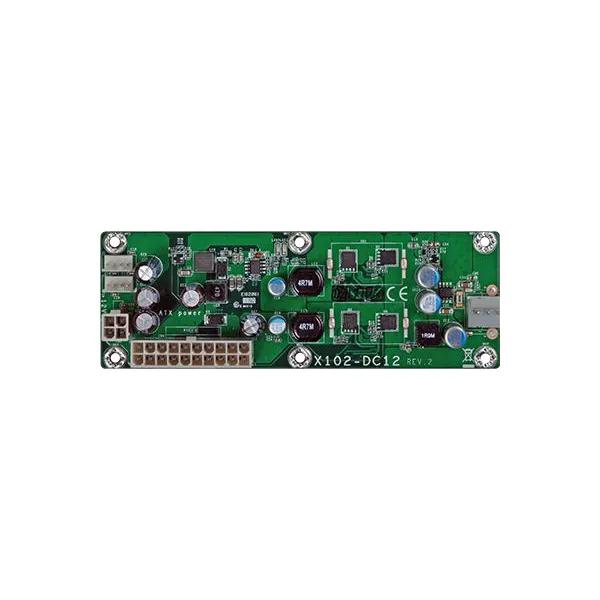

DC to DC Converters X102-DC12
11.4V - 12.6V DC to DC Converters, Input: 11.4V - 12.6V, Output: 130W , DIMENSIONS: 146mm x 50mm
DC to DC Converters X102-DC12 Characteristics:
Input Voltage: 11.4V - 12.6V
Maximum Output: 130W
CONNECTORS: One DC 12V jack; One 4-pin ATX +12V power; One 20-pin ATX power
DC INPUT: 2.5mm 12V jack
ENVIRONMENT: Temperature: 0-60oC / 32-140oF; Relative Humidity: 10%-90%
DIMENSIONS: 4 layers, 146mm x 50mm (5.74" x 1.96"); height: 25mm
Output Voltage (power for DC voltages):
Output Voltage/Output Current/Power Output/Test Result
+3.3V ±5% /5A /16.5W /125.9w
+5V ±5% /5A /25W /125.9w
5VSB ±5% /2A /10W /125.9w
+12V ±5% /6A /72W/125.9w
-12V ±10% /0.2A /2.4W/125.9w
DC to DC Converters X102-DC12
PORT: 1 SATA, INTERFACE: mSATA, DIMENSIONS: 35mm x 25mm (1.38" x 0.98") mSATA to SATA Modules
DC to DC Converters X102-DC12 Characteristics:
Features: Standard SATA interface module for mSATA to SATA connector, Compliant with Serial ATA Advanced Host Controller Interface (AHCI), Supports 1 SATA port
HUMIDITY: 5% to 90%
TEMPERATURE: Operating: 0°C to 60°C
Storage: -20°C to 85°C
DIMENSIONS: 35mm x 25mm (1.38" x 0.98")
